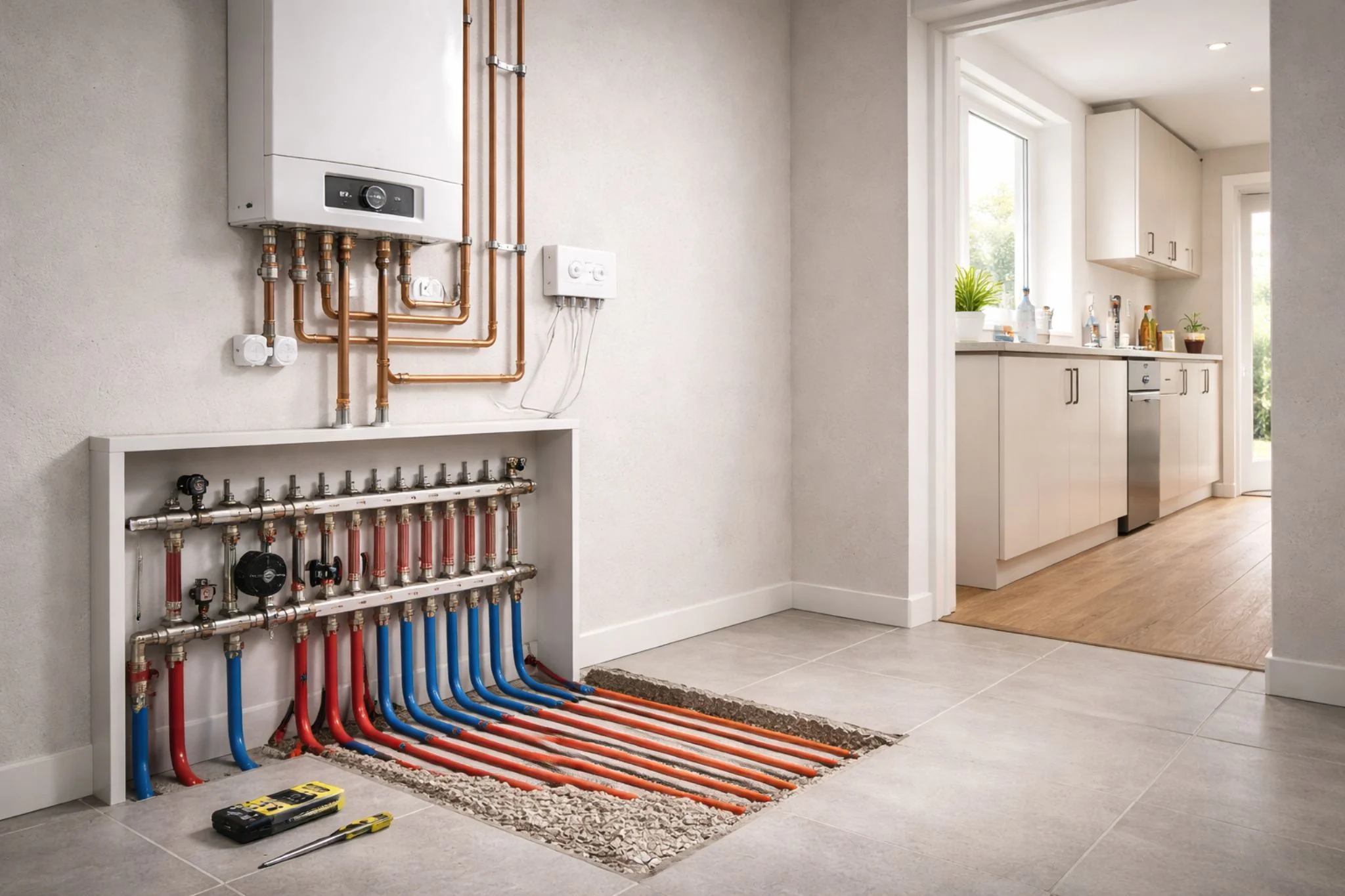

How to Connect Underfloor Heating Manifold to Boiler?

Matt Keane
Insulation
November 8, 2024

Are you looking to connect an underfloor heating manifold to your boiler but unsure where to start? Underfloor heating systems are becoming increasingly popular for their efficiency and the comfort they bring to homes, offering consistent warmth across every room.

Connecting the manifold to the boiler is a key step in setting up underfloor heating, as it distributes hot water evenly throughout the system. This process allows for zoned temperature control, which can be especially beneficial in larger homes or properties with varied heating needs.

However, understanding the connection process is essential to ensure safe and effective installation. In this blog post, we will explore how underfloor heating works, covering its key components, functionality, and the benefits it brings to your home or workspace.

How Does Underfloor Heating Work?

Underfloor heating operates through two main types: electric and water-based (or hydronic) systems.

Electric underfloor heating uses heating mats or cables under the floor, which are easy to install but typically more expensive to run over time. The water-based system, however, is more common and efficient for heating larger areas.

In a hydronic underfloor heating setup, a boiler heats the water, which is then circulated through a series of pipes embedded beneath the floor. This circulating warm water radiates heat upward, warming the room evenly from the ground up.

By using a lower temperature compared to radiators, underfloor heating provides steady, comfortable warmth without creating cold spots or causing significant fluctuations in temperature.

Underfloor heating systems can be zoned, meaning that different areas of a building can have independent temperature controls, which adds to the system's efficiency and comfort.

These zones are managed by a manifold that distributes the water to each circuit, allowing for precise heating control across different parts of a building.

How Does Underfloor Heating Connect to a Temporary Boiler?

Temporary boilers offer a convenient solution for maintaining heat during maintenance, renovation, or when the primary boiler is replaced.

Connecting a temporary boiler to an underfloor heating system allows homeowners or businesses to continue enjoying warmth without interruption. This connection process involves several steps to ensure the temporary boiler integrates smoothly with the underfloor heating system.

First, the temporary boiler is positioned to align with the existing heating system. Then, the flow and return pipes of the temporary boiler are connected to the manifold.

It’s essential that the temporary boiler is compatible with the underfloor heating system’s requirements, as some adjustments to temperature and flow rates may be necessary. Additionally, technicians must check that the pressure levels match to avoid any strain on the system.

Once connected, the temporary boiler will begin circulating heated water through the manifold and into the underfloor pipes.

Because underfloor heating requires a lower temperature than radiators, technicians might install a mixing valve with the manifold to reduce the water temperature from the temporary boiler.

The mixing valve ensures that the underfloor system receives water at the optimal temperature, preventing any risk of damage or overheating.

How Does the Manifold Work with Your Heating System?

In water-based underfloor heating, the manifold serves as the central hub, regulating and distributing water from the boiler to each heating circuit under the floor.

Each room or heating zone connects to the manifold, allowing individual thermostats to control the temperature in each area.

This zoning capability makes the system more energy-efficient and customisable, letting users adjust warmth based on room usage or personal preferences.

The manifold is equipped with several components to manage flow, pressure, and temperature effectively. Key elements include:

  • Flow Meters: These measure and control the flow rate of water in each circuit, ensuring consistent heating across different zones.
  • Balancing Valves: Used to fine-tune the water distribution, balancing valves help achieve even heating in all parts of a building.
  • Thermometers: Located on the manifold, thermometers display the temperature of water entering and leaving the system, helping maintain the ideal heat level.

Additionally, the manifold may include a mixing valve, which mixes water from the boiler with cooler return water to adjust the temperature before it circulates through the underfloor pipes.

This setup is especially useful in systems where different floor zones may need varying temperatures. The mixing valve helps the system maintain optimal efficiency and ensures that the floors aren’t exposed to overly hot water, which could damage some flooring materials.

Overall, the manifold’s role is crucial in an underfloor heating system. It acts as a distribution and control center, regulating how heat is applied throughout the building.

The manifold’s ability to control flow rates, balance water distribution, and monitor temperature is essential for keeping the system efficient and comfortable.

Conclusion

Connecting an underfloor heating system to a boiler involves understanding the crucial role of the manifold, which distributes heat evenly and allows for precise control in each zone of your home.

By knowing how to work with temporary boilers and manifold components like flow meters and mixing valves, you can ensure that your underfloor heating system operates efficiently and provides lasting comfort.

If you're looking to install or optimise an underfloor heating system, BuildPro offers expert guidance and professional installation services in Ireland. Contact BuildPro today to schedule a consultation and discover how our customised solutions can make your home warmer and more energy-efficient.
